TOP 2165-25T2-06 Indexable drill with 2xDia. drilling depth

Categories	Indexable Drills
Album	View larger image
Model	TOP 2165-25T2-06
FOB port	Shanghai/Ningbo
Terms of Payment	Western Union, T/T, Paypal
Update Time	2020-02-22

Contact Now

Favorites

Detail Information

Product Description

1. The drilling diameter is Φ16.5mm. The Drilling depth is 2XDiameter.

2. Matched with SOMT insert from TaeguTec and also our own XOMX insert.

3. Spare parts are imported from Korea and Germany in good quality, further prolong the service life.

4. Provided complete specification and competitive price.

TOP 2.. -T2

*Drilling depth: 2xDia.
Model	Dimension(mm)							Insert
Model	D	d	D3	L	L1	L2	Ls	Insert
TOP 2140-20T2-05	14.0	20	25	96	28	46	50	XOMX 05
TOP 2145-20T2-05	14.5	20	25	99	30	49	50
TOP 2150-20T2-05	15.0	20	25	99	30	49	50
TOP 2155-20T2-05	15.5	20	25	102	32	52	50
TOP 2160-20T2-05	16.0	20	25	102	32	52	50
TOP 2165-25T2-06	16.5	25	32	110	34	54	56	XOMX 06
TOP 2170-25T2-06	17.0	25	32	110	34	54	56
TOP 2175-25T2-06	17.5	25	32	113	36	57	56
TOP 2180-25T2-06	18.0	25	32	113	36	57	56
TOP 2185-25T2-06	18.5	25	32	115	38	59	56
TOP 2190-25T2-06	19.0	25	32	115	38	59	56
TOP 2195-25T2-07	19.5	25	32	119	40	63	56	XOMX 07
TOP 2200-25T2-07	20.0	25	32	119	40	63	56
TOP 2205-25T2-07	20.5	25	32	121	42	65	56
TOP 2210-25T2-07	21.0	25	32	121	42	65	56
TOP 2215-25T2-07	21.5	25	32	123	44	67	56
TOP 2220-25T2-07	22.0	25	32	123	44	67	56
TOP 2225-25T2-08	22.5	25	32	124	46	68	56	XOMX 08
TOP 2230-25T2-08	23.0	25	32	124	46	68	56
TOP 2230-32T2-08	23.0	32	40	128	46	68	60
TOP 2235-25T2-08	23.5	25	32	126	48	70	56
TOP 2235-32T2-08	23.5	32	40	130	48	70	60
TOP 2240-25T2-08	24.0	25	32	126	48	70	56
TOP 2240-32T2-08	24.0	32	40	130	48	70	60
TOP 2245-25T2-08	24.5	25	32	128	50	72	56
TOP 2245-32T2-08	24.5	32	40	132	50	72	60
TOP 2250-25T2-08	25.0	25	32	128	50	72	56
TOP 2250-32T2-08	25.0	32	40	132	50	72	60
TOP 2255-25T2-08	25.5	25	32	129	52	73	56
TOP 2255-32T2-08	25.5	32	40	133	52	73	60
TOP 2260-25T2-08	26.0	25	32	129	52	73	56
TOP 2260-32T2-08	26.0	32	40	133	52	73	60
TOP 2265-32T2-09	26.5	32	40	137	54	77	60	XOMX 09
TOP 2270-25T2-09	27.0	25	40	133	54	77	56
TOP 2270-32T2-09	27.0	32	40	137	54	77	60
TOP 2275-32T2-09	27.5	32	40	139	56	79	60
TOP 2280-25T2-09	28.0	25	40	135	56	79	56
TOP 2280-32T2-09	28.0	32	40	139	56	79	60
TOP 2285-32T2-09	28.5	32	40	141	58	81	60
TOP 2290-25T2-09	29.0	25	40	137	58	81	56
TOP 2290-32T2-09	29.0	32	40	141	58	81	60
TOP 2295-32T2-09	29.5	32	40	143	60	83	60
TOP 2300-32T2-09	30.0	32	40	143	60	83	60
TOP 2305-32T2-09	30.5	32	40	145	62	85	60
TOP 2310-32T2-09	31.0	32	40	145	62	85	60
TOP 2320-32T2-11	32.0	32	40	147	64	87	60	XOMX 11
TOP 2320-40T2-11	32.0	40	50	157	64	87	70
TOP 2330-32T2-11	33.0	32	40	149	66	89	60
TOP 2330-40T2-11	33.0	40	50	159	66	89	70
TOP 2340-32T2-11	34.0	32	40	151	68	91	60
TOP 2340-40T2-11	34.0	40	50	161	68	91	70
TOP 2350-32T2-11	35.0	32	40	153	70	93	60
TOP 2350-40T2-11	35.0	40	50	163	70	93	70
TOP 2360-32T2-11	36.0	32	40	155	72	95	60
TOP 2360-40T2-11	36.0	40	50	165	72	95	70
TOP 2370-32T2-13	37.0	32	50	162	74	102	60	XOMX 13
TOP 2370-40T2-13	37.0	40	50	172	74	102	70
TOP 2380-32T2-13	38.0	32	50	164	76	104	60
TOP 2380-40T2-13	38.0	40	50	174	76	104	70
TOP 2390-32T2-13	39.0	32	50	166	78	106	70
TOP 2390-40T2-13	39.0	40	50	176	78	106	70
TOP 2400-32T2-13	40.0	32	50	168	80	108	70
TOP 2400-40T2-13	40.0	40	50	178	80	108	70
TOP 2410-40T2-13	41.0	40	50	180	82	110	70
TOP 2420-40T2-13	42.0	40	50	182	84	112	70
TOP 2430-40T2-13	43.0	40	50	184	86	114	70
TOP 2440-40T2-15	44.0	40	60	193	88	123	70	XOMX 15
TOP 2450-40T2-15	45.0	40	60	195	90	125	70
TOP 2460-40T2-15	46.0	40	60	197	92	127	70
TOP 2470-40T2-15	47.0	40	60	199	94	129	70
TOP 2480-40T2-15	48.0	40	60	201	96	131	70
TOP 2490-40T2-15	49.0	40	60	203	98	133	70
TOP 2500-40T2-15	50.0	40	60	205	100	135	70

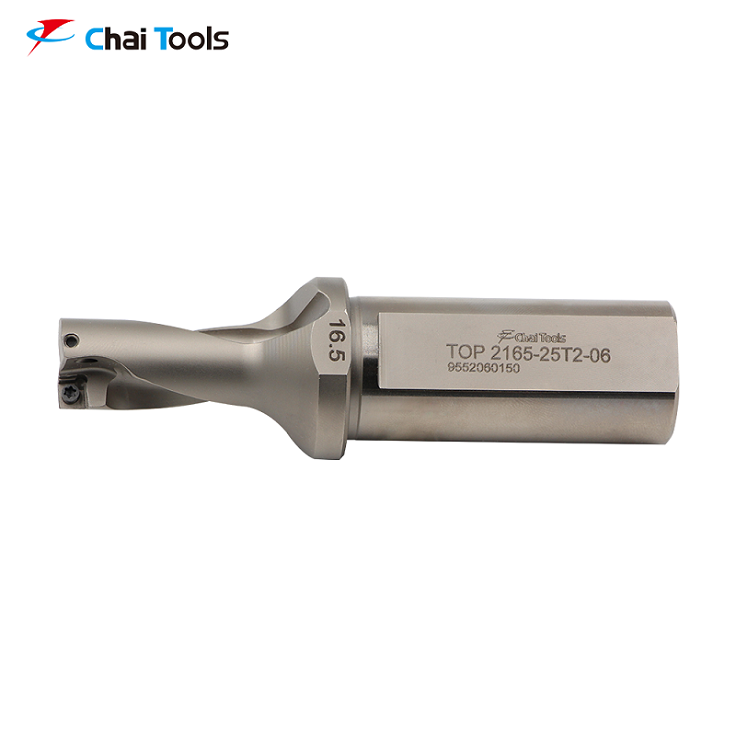

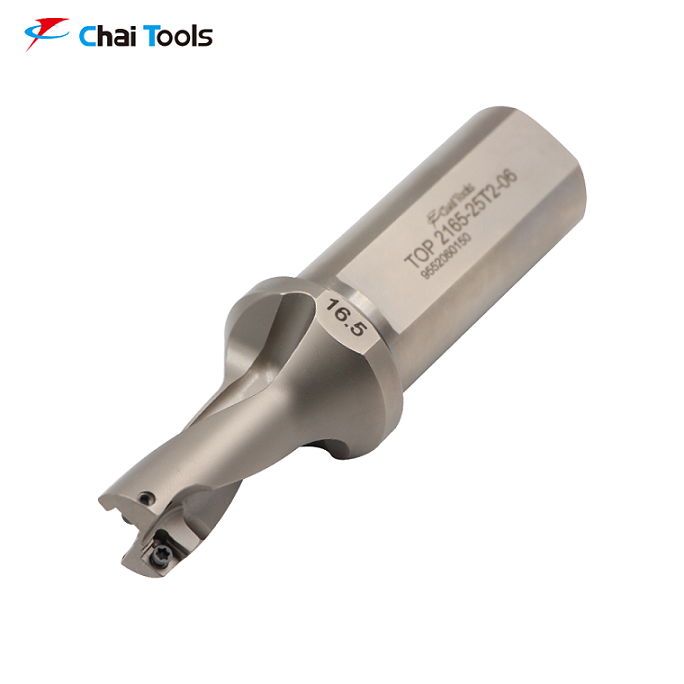

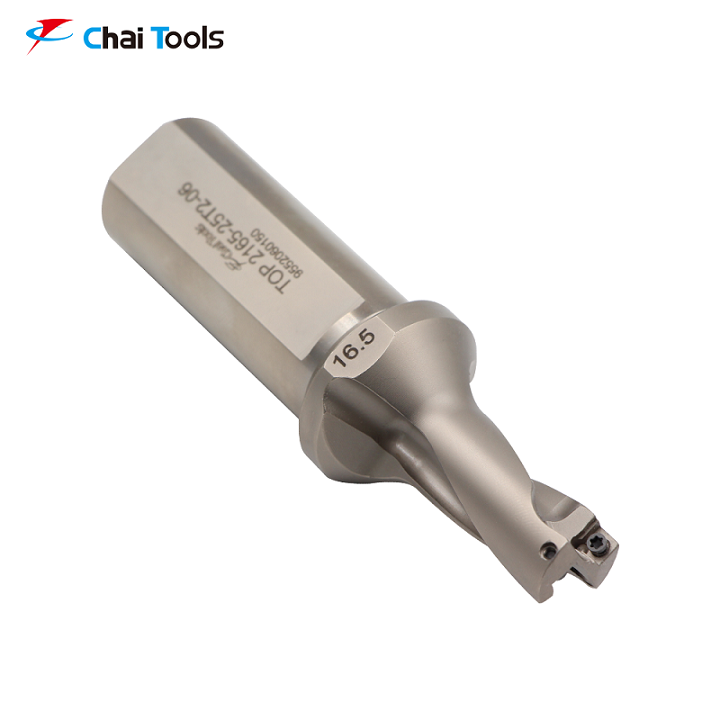

Product Pictures
